Type M (Microperforations - wall 20 mm)
A core of 2 x 9 mm in black moisture repellent MDF with acoustic absorbing non woven glass fibre tissue in the center.
Top layer and backing in Print HPL of 0.9 mm. On request: digital print.
Test setup 90 mm Test setup 40 mm
Type M - 10.6 % — nvt/nvt

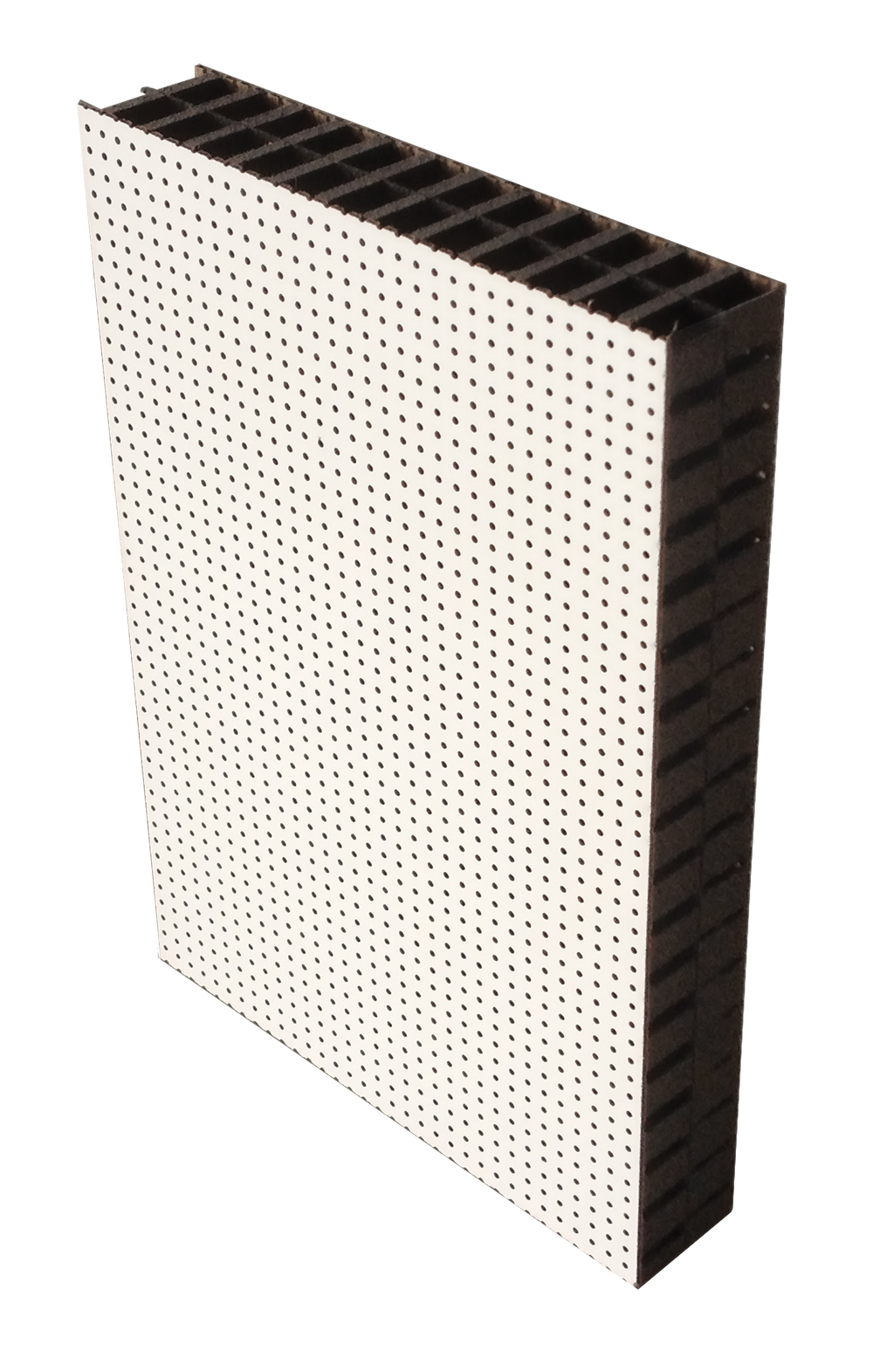

The acoustic absorbing panels Type M are equipped with standard 10.6 % microperforations with a diameter of 1.1 mm (linear 3/3/1.1). They consist of a black moisture repellent core in MDF of 2 x 9 mm - on request standard MDF, red or black fireretardant MDF - with an acoustic absorbing non woven glass fibre tissue on the back and a top layer and backing in Print HPL of 0.9 mm or a finish in digital print on request.
- AlphaW in a setup with a total thickness of 90 mm: 0.85
- AlphaW in a setup with a total thickness of 40 mm: 0.70
Download technische fiche
| Thickness | +/- 20 mm |
|---|---|
| Weight | 11 kg/m² |
| Composition of the material | A core of 2 x 9 mm in MDF 2-sided high-quality HPL-finish (EN 438) of Abet Laminati Acoustic absorbing non woven glass fibre tissue in the center |
| Perforation | Standard 10.6 % microperforations with a diameter of 1.1 mm (linear 3/3/1.1) |
| Top layer | Print HPL of 0.9 mm On request: digital print |
| Core | Black moisture repellent MDF On request: standard MDF, red or black flame retardant MDF (B-s 1-d0) |
| Measurements | 3000 x 1270 x 20 mm (HPL)Made-to-measure on request |
